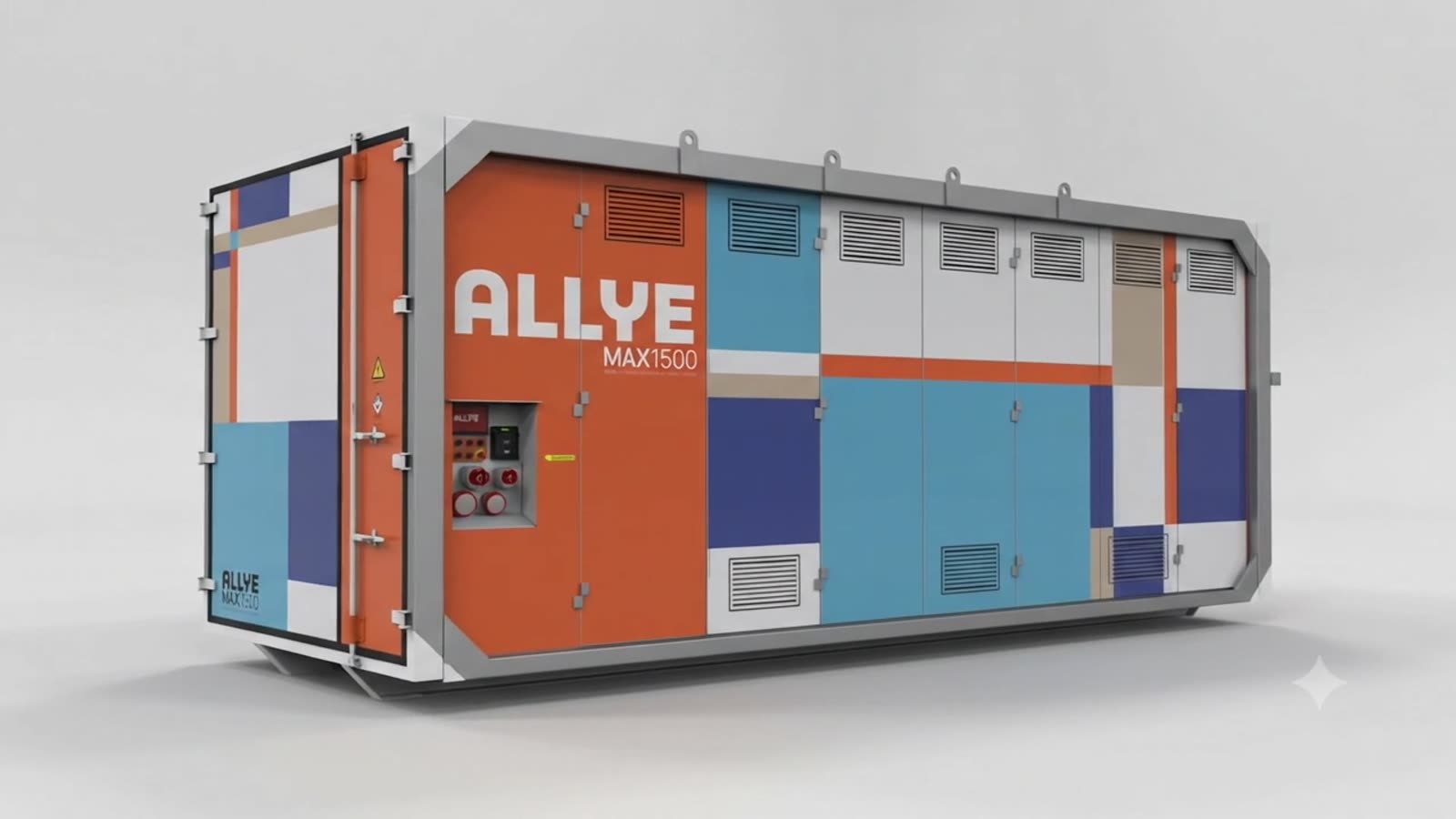

MAX1500 · Drop and Go

Our highest power and capacity.

Name: Allye MAX1500
Brand: Allye

MAX1500 delivers 1.5MWh and up to 1.26MW for the most demanding sites, from data centres to depots and major infrastructure, with integrated DC charging up to 1.28MW. Parallel units for more power.

Build your MAX1500 Specification

1.5MWhrated capacity

1.26MWcontinuous power

1.28MWDC charging

<2 minto drop from a hooklift

Why MAX1500

Our highest power and capacity

Our highest power: 1.26MW continuous and 1.5MWh
Up to 1.28MW DC charging for trucks, buses and heavy plant
Drop and Go in a 20ft footprint, in under two minutes
Parallel units without limit for larger sites

Proven

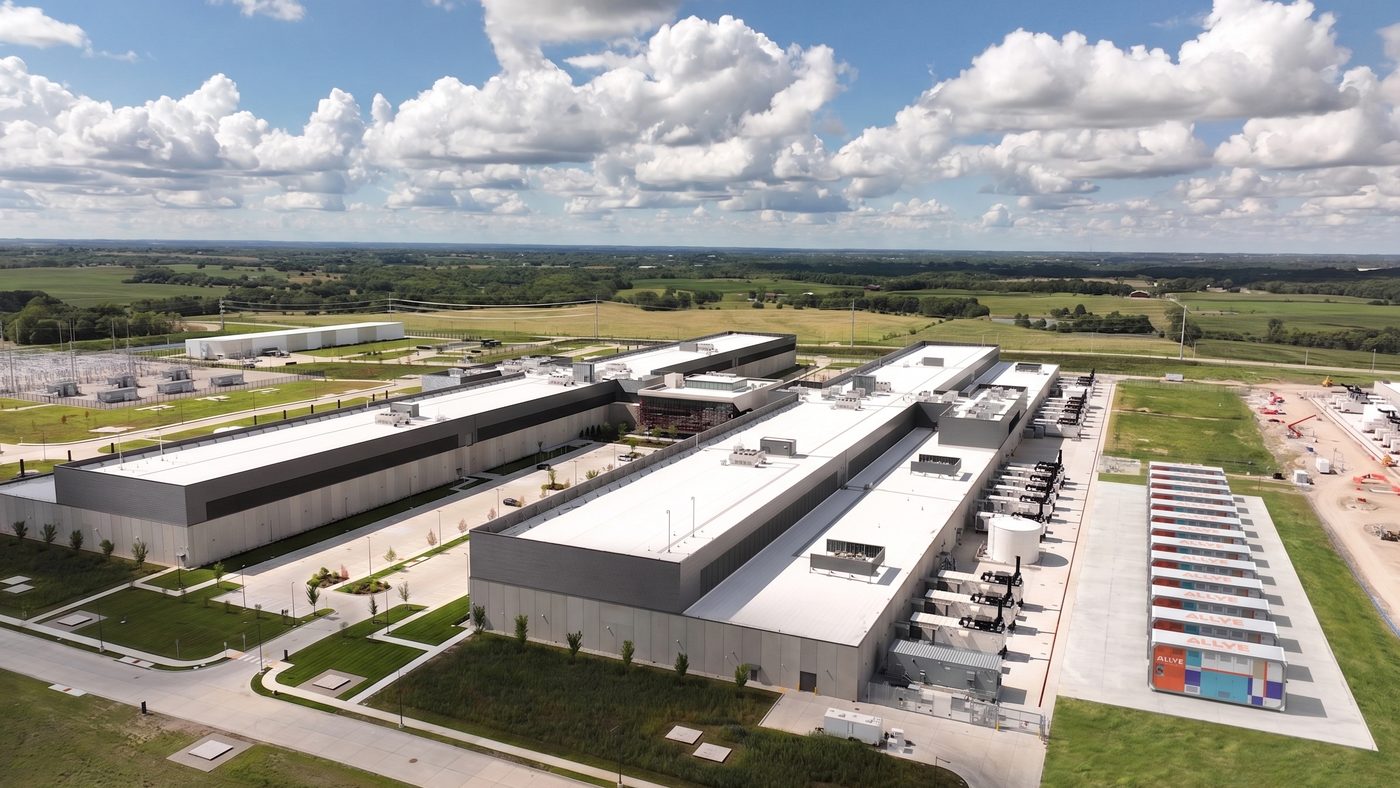

Data centres, modelled

A MAX1500 runs a 1.26MW hall from an existing 500kW supply, bridging the wait for a new connection without diesel.

£200k

a year saved against diesel bridge power

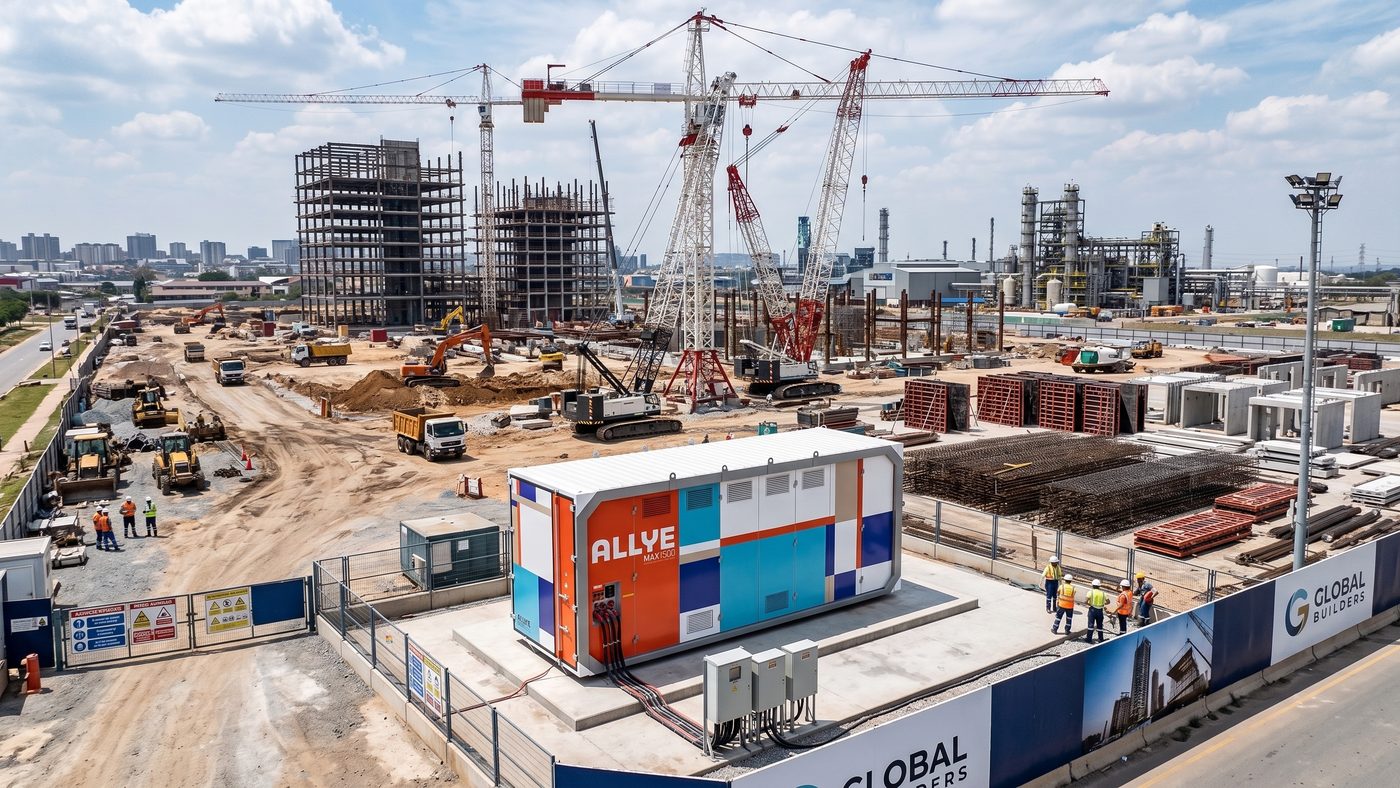

Where it is used: Data centres, truck and bus depots, major infrastructure, utilities, industrial sites

What it does

Everything it can do, and how you can have it

On-grid · Stationary

Battery as a buffer

Charge off-peak or from solar.
Boost peak power above your limit.
Back up the site in under 40ms.
Earn from grid flexibility markets.

Off-grid · Mobile

Battery as a generator

Charge from DC, a MAX or a generator.
Power quietly, zero local emissions.
Top up from a generator if needed.
Save fuel, run hours and emissions.

EV charging

Integrated, grid-tied or off-grid

DC 180, 240, 480, 640kW or 1.28MW (1.28MW on High Power). Two outlets, buffer or direct. DC recharging (125kW) lets MAX top up from any public or depot DC charger.

Drop and Go

Deployed in minutes

Lowered from a standard hooklift truck in under two minutes, or lifted from the top. Permanent, semi-permanent or fully mobile. Classified UN3536 for simple transport.

Power control

Advanced energy and power transfer

PackFlex

Each pack runs through its own inverter, so the system keeps going if one goes offline, and charges and discharges at once.

Standard

SyncFlow

Synchronises with the grid or a generator, transferring loads in under 40ms; peak shaving keeps a site within its limit.

Option

IsoCharge

Isolates sensitive loads from supply disturbances, with no back-feed. MAX carries demand while a small supply recharges it.

Option

IsoPass

Keeps critical loads powered if the system goes offline, routing supply straight to the load. Essential for live broadcast.

Option

PhaseFlex

Turns a single-phase connection into a stable three-phase output, enabling DC fast charging from even a small supply.

Option

Specification

MAX1500 technical specification

Full specification

Rated capacity	1,476kWh
Usable capacity	1,350kWh
Battery packs	18
Chemistry	NMC or NCA, with optional LFP, in single or mixed chemistry
C-rate	Up to 4C (depending on inverters)
Continuous power	630 or 1,260kW
Dimensions (L x W x H)	6,170 x 2,550 x 3,125mm
DC charging (option)	180, 240, 480, 640kW or 1.28MW
DC recharging (option)	125kW
System architecture	400/800V
Cycle life	3,500 (NMC/NCA or mixed) or 5,500 (LFP) to 70% SoH
Battery life	12 years
Peak power	110% for 10 min, 120% for 1 min; short circuit 200ms
AC rated voltage	400/415V three-phase; 230/240V single-phase
Frequency	50/60Hz, software configurable
Pass-through current	125A (higher up to the limit with SyncFlow)
System efficiency	>94% from 25% to 100% load
Cooling	Integrated liquid cooling for batteries and converters
Working temperature	-10°C to 40°C (chiller or heater for extremes)
IP rating	IP54 (battery packs IP67)
Noise	59dB
Fire prevention	Multi-parameter sensing for VOC, shock and environment; full cell monitoring; pyro fuse in every pack
Fire mitigation	Stat-X aerosol suppression (option) with water, plus battery flood and vent ports
Communication	RS485 / CAN / 4G, LTE; Modbus TCP / CAN / API
Paralleling	Unlimited, and models can be mixed on one site
Connections	125A in, 125A and 63A out as standard; Powerlocks, busbars and other sockets optional
Transport	Classified UN3536: hire users display the plate and Class 9 label, with no wider ADR obligations
Certification	UKCA/CE; IEC 62619, IEC 62477-1, IEC 62933-5-2, UN38.3; designed to UL9540A; packs ECE R100; G99 pending
Warranty	3 years, or 5 years with the platform fee

Standard and options

	Mid Power (630kW)	High Power (1.26MW)
Batteries
EV packs (NMC/NCA chemistry)	S (18)	S (18)
EV packs (LFP chemistry)	O (18)	O (18)
Power conversion
Bi-directional AC-DC power conversion	S	S
Liquid cooled inverters (35kW)	S (18)	S (36)
Heat pump with chiller	O	O
Power control
SyncFlow (500kW)	O	O
IsoCharge (3ph only)	O	O
PhaseFlex (1ph and 3ph)	O	O
IsoPass	O	O
Solar roof (880W)	O	O
Genset remote start terminal	S	S
Sockets (with MCCB)
125A 3ph in	S	S
125A 3ph out	S	S
63A 3ph out	S	S
32A 1ph in	O	O
Powerlocks (400A) in	O	O
Powerlocks (400A) out	O	O
Additional 63A 3ph out	O	O
32A 3ph out	O	O
63A 1ph out	O	O
32A 1ph out	O	O
16A 1ph out	O	O
External earth leakage detection (per outlet)
Manual (fixed or manually adjustable)	O	O
Modbus (remotely adjustable)	O	O
Safety
Multi-function protection sensor	S	S
Aerosol fire suppression (Stat-X)	O	O
EV charging
180kW DC CCS	O	O
240kW DC CCS	O	O
480kW DC CCS	O	O
640kW DC CCS	O	O
1.28MW DC CCS	n/a	O
DC recharging (125kW)	O	O
Structure
Forklift pockets	S	S
Lift from top	S	S
Appearance
Custom paint	O	O
Custom wrap	O	O
Custom decal	O	O

S StandardO Optionn/a Not availablePrices of options confirmed with quotation. Units are delivered painted solid white unless otherwise specified.

Usable capacity at 100% pack state of health; average delivered state of health is 94%. Any single or mixed chemistry can be specified, which affects total capacity; a single-chemistry LFP system reduces capacity by approximately 25%. The platform fee is a single payment covering the first three years from delivery and extends the warranty to 5 years. All specifications are subject to change without notice.
